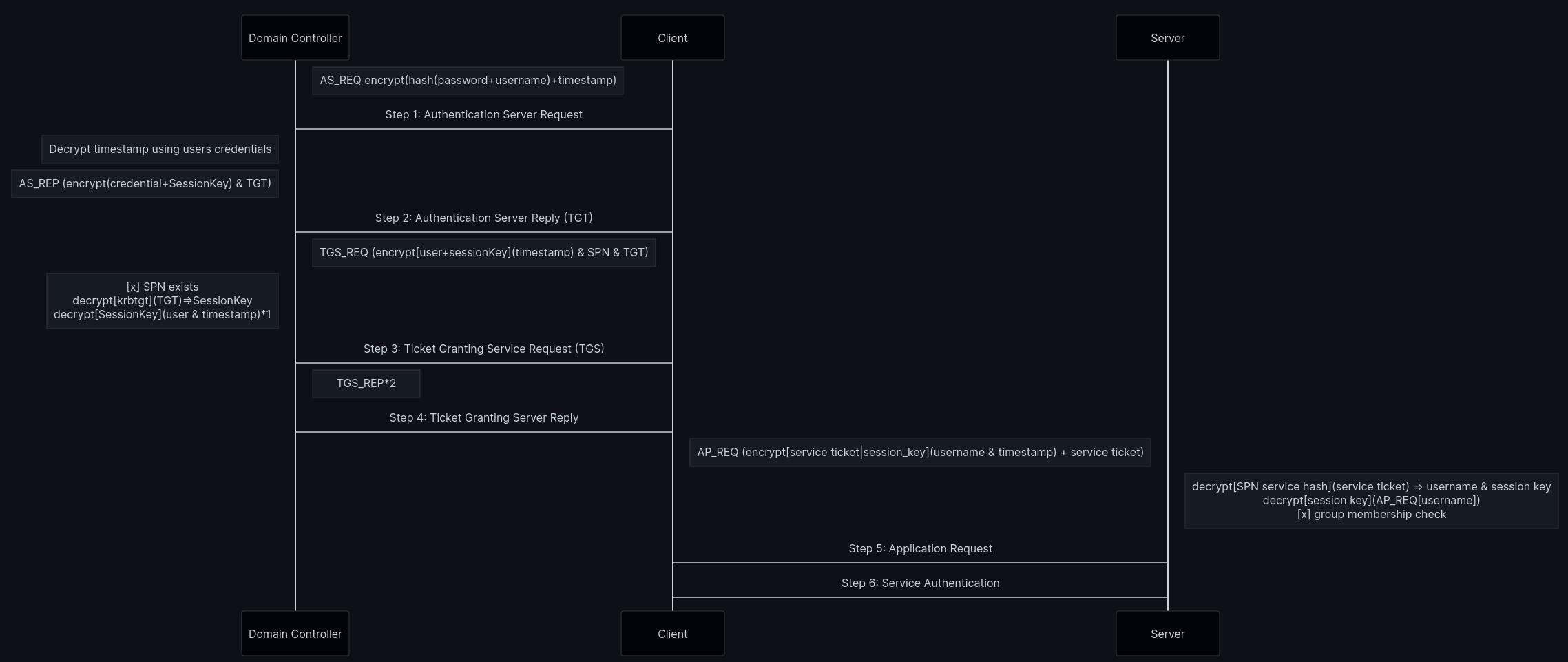

Simplified Kerberos

*1: Needs to be fulfill:

  • [ ] The TGT must have a valid timestamp (no replay detected and the request has not expired)
  • [ ] The username from the TGS_REQ has to match the username from the TGT.
  • [ ] The client IP address needs to coincide with the TGT IP address

*2: Contains the following

  • [ ] The SPN to which access has been granted
  • [ ] A session key to be used between the client and the SPN.
  • [ ] A service ticket containing the username and group memberships along iwth the newly created session key.
  • SPN & session key are encrypted using the session key associated with the TGT
  • service ticket is encrypted using the password hash of the service account (SPN associated account)

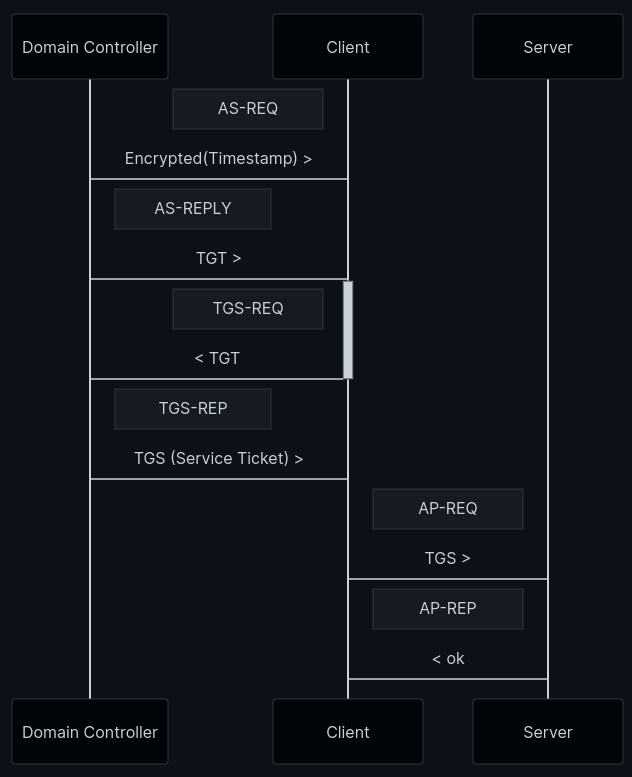

Simplified Kerberos2

  1. AS-REQ (Authentication Service Request
    • Client to KDC
    • Contains:
      • REALM (Domain)
      • Username (i4@heimat[.]erde)
  2. AS-REP
    • KDC to Client
    • Contains:
      • encrypted ticket (TGT)
      • encrypted client blob
        • contains metadata & session key

Info

  • DES got replaced in 2006 (Should not be used anymore)
  • ADDC acts as KDC (Key distribution center) & AS (Authentication Server)
  • TGT is encrypted by a secret key that is only known to the KDC (krbtgt)
  • Default TGT lifetime - 10h
  • A TGT can be used to request new TGS (Access to other services)
  • Stealing a TGS only allows access to that particular resource.

Linux Usage

Getting a TGT

impacket-getTGT can be used to get a TGT for a certain user for which the credentials are known or where we have the NTHash for an overpass-the-hash attack.

impacket-getTGT -hashes aad3b435b51404eeaad3b435b51404ee:24d8c932c6cdee6a67d723fd42ac2892 heimat.erde/[email protected]
  • To use klist the REALM in /etc/krb5.conf needs to be set correctly
$ impacket-getTGT heimat.erde/[email protected]
Impacket v0.10.0 - Copyright 2022 SecureAuth Corporation

Password:
[*] Saving ticket in [email protected]

$ export KRB5CCNAME=./[email protected]
$ cp ./[email protected] /tmp/krb5cc_1000
$ klist
Ticket cache: FILE:/tmp/krb5cc_1000
Default principal: [email protected]

Valid starting       Expires              Service principal
04/23/2023 19:32:20  04/24/2023 05:32:20  krbtgt/[email protected]
        renew until 04/24/2023 19:32:19

Getting an ST

Now that we have a TGT we can request ST with it.

  • This can also be done without a TGT but maybe will create more noise (overpass-the-hash)
  • The KRB5CCNAME variable needs to point to your ccache ticket
$ impacket-getST -spn cifs/elstr -k -no-pass heimat.erde/i4
Impacket v0.10.0 - Copyright 2022 SecureAuth Corporation

[*] Getting ST for user
[*] Saving ticket in i4.ccache
$ export KRB5CCNAME=./i4.ccache
$ cp ./i4.ccache /tmp/krb5cc_1000
$ klist
Ticket cache: FILE:./i4.ccache
Default principal: [email protected]

Valid starting       Expires              Service principal
04/23/2023 19:39:27  04/24/2023 05:32:11  cifs/[email protected]
        renew until 04/24/2023 19:32:10
